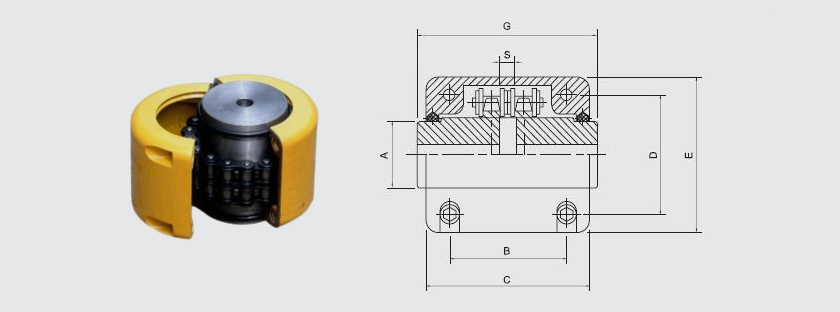

체인 카플링(CHAIN COUPLING)
Coupling No. 체인 A B C D E S G 개략중량
Approx.
weight
(kg)
피치 폭(최대)
MS 4012 12.70 32.6 ø 31 55 77 56 ø 72 7.4 85.4 0.8
MS 4016 12.70 32.6 ø 47 55 77 72 ø 88 7.4 85.4 1.6
MS 5014 15.875 40.8 ø 49 62 84 79 ø 95 9.7 99.7 2.0
MS 5016 15.875 40.8 ø 61 62 84 91 ø 109 9.7 99.7 2.8
MS 5018 15.875 40.8 ø 68 62 84 100 ø 116 9.7 100.7 3.6
MS 6018 19.05 50.6 ø 84 71 97 122 ø 138 11.5 123.5 6.5
MS 6022 19.05 50.6 ø 110 71 97 146 ø 162 11.5 123.5 11.1
MS 8018 25.40 65.6 ø 109 97 123 165 ø 187 15.2 141.2 13.8
MS 8022 25.40 65.6 ø 138 97 123 198 ø 220 15.2 157.2 21.7
MS 10020 31.75 78.5 ø 152 124 160 222 ø 258 18.8 178.8 32.6
MS 12018 38.10 99.2 ø 165 154 190 244 ø 280 22.7 202.7 46.1
MS12022 38.10 99.2 ø 203 163 207 290 ø 334 22.7 222.7 69.0
MS 16018 50.8 127.3 ø 219.5 157 245.5 338.5 ø 381 30.1 254.1 96.3
MS 16022 50.8 127.3 ø 280 196 262 394.5 ø 440 30.1 310.1 166.8

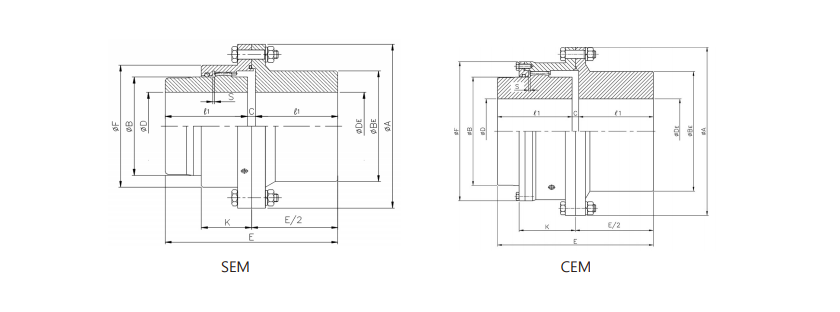

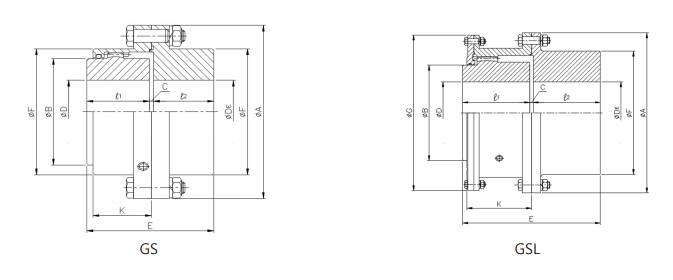

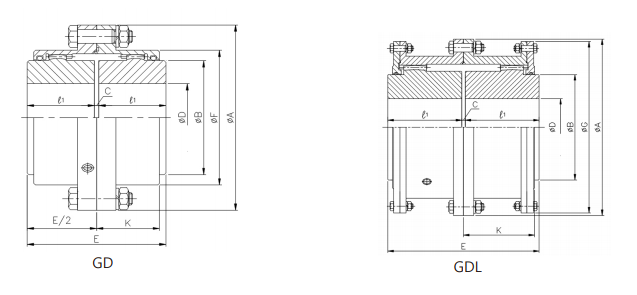

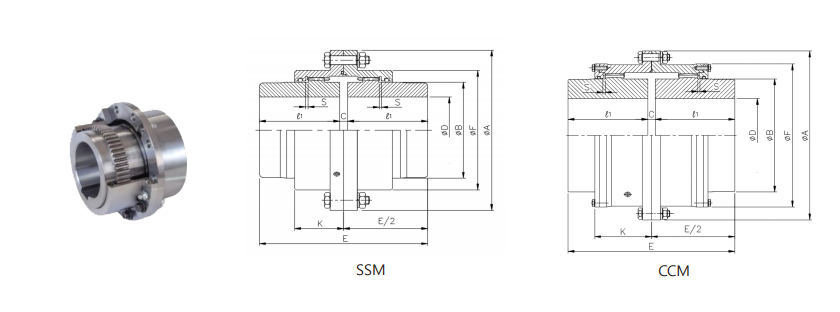

기어 카플링(GEAR COUPLING)
규격 허용
Torque
(kgf*m)		 최대
회전수
(rpm)		 치수｛mm〕 Grease
( kg )		 중량
( kg )		 GD2
(kgf*㎡)
축경(D) E ℓ1 C B F K S
Max.
SSM112 80.3 4,000 40 108 50 8 58 79 40 2.0 0.055 4.3 0.0198
SSM125 142.0 4,000 50 134 63 8 70 92 43 2.5 0.072 6.6 0.0353
SSM140 205.0 4,000 56 150 71 8 80 107 47 2.5 0.110 93 0.0612
SSM160 314.0 4,000 65 170 80 10 95 120 52 3.0 0.140 14.0 0.1130
SSM180 482.0 4,000 75 190 90 10 105 134 56 3.0 0.180 19.0 0.1910
SSM200 689.0 3,810 85 210 100 10 120 149 61 3.0 0240 26.0 03150
SSM224 1,000.0 3,410 100 236 112 12 145 174 65 4.0 0.360 39.0 0.5990
SSM250 1,470.0 3,050 115 262 125 12 1&5 200 74 4.0 0.530 55.0 1.0800
SSM280 2,340.0 2,720 135 294 140 14 190 224 82 4.5 0.690 81.0 2.0600
SSM315 3,680.0 2,420 160 356 170 16 225 260 98 5.5 1.100 129.0 4.2400
SSM355 5.550.0 2,150 180 396 190 16 250 288 108 5.5 1300 177.0 7.1300
SSM400 7,790.0 1,900 200 418 200 IS 285 330 114 6.5 2.000 242.0 12.5000
규격 허용
Torque
(Tonf * m)		 최대
회전수
(rpm)		 치수 (mm) Grease
(kg)		 중량 GD2
(kgf*㎡)
축경 (D) E ℓ1 C B F K S
Max.
CCM450 11.0 1,690 205 418 200 18 290 372 151 5.0 2.6 298 16.6
CCM500 16.6 1,520 250 494 236 22 335 424 168 6.0 3.8 446 36.9
CCM560 26.5 1,360 280 552 265 22 385 472 187 6.5 4.6 642 67.6
CCM630 42.0 1,210 325 658 315 28 455 544 213 8.0 6.7 1,010 137.0
CCM710 61.2 1,070 360 738 35S 28 510 622 242 8.5 9.4 1,440 250.0
CCM800 87.5 950 405 832 400 32 570 690 267 9.5 13.0 2,030 441.0
CCM900 125.0 840 475 932 450 32 670 792 295 10.5 17.0 3,030 860.0
CCM1000 171.0 760 510 1,040 500 40 720 858 322 12.0 23.0 4,120 1,330.0
CCM1120 240.0 682 600 1.160 560 40 840 990 360 13.0 31.0 5,920 2,650.0
CCM1250 331.0 610 710 1.460 710 40 960 1,126 399 14.0 45.0 9,410 5.290.0
※ 중량 및 GD2의 값은 내경 가공이 되지 않은 상태의 경우입니다.
규격 허용
Torque
(kgf*m)		 최대
회전수
(rpm)		 치수 (mm) Grease (kg) 중량
(kg)		 GD2
(kgf*㎡)
축경 E ℓ1 C B BE F K S
Max.
(D)		 Max.
(DE)
SEM112 80.3 4,000 40 50 108 50 8 58 70 79 40 2.0 0.042 4.6 0.0197
SEM125 142.0 4,000 50 56 134 63 8 70 80 92 43 2.S 0.056 6.7 0.0348
SEM140 205.0 4,000 56 63 150 71 8 80 90 107 47 2.S 0.085 93 00591
SEM160 314.0 4,000 65 75 170 80 10 95 10S 120 52 3.0 0.110 14 0.1110
SEM180 482.0 4,000 75 80 190 90 10 105 115 134 56 3.0 0.140 19 0.1830
SEM200 689.0 3,810 85 95 210 100 10 120 135 149 61 3.0 0.180 26 0.3170
SEM224 1,000.0 3,410 100 105 236 112 12 145 150 174 65 4.0 0.290 38 0.5790
SEM250 1470.0 3,050 115 125 262 125 12 165 180 200 74 4.0 0.410 56 1.0800
SEM280 2,340.0 2,720 135 150 294 140 14 190 210 224 82 4.5 0.560 83 2.1400
SEM315 3,680.0 2,420 160 180 3S6 170 16 225 250 260 98 5.5 0.900 135 4.5500
SEM3S5 5,550.0 2,150 180 200 396 190 16 250 275 288 108 5.5 1.100 184 7.5000
SEM400 7,790.0 1,900 200 236 418 200 18 285 325 330 114 6.5 1.600 261 14.1000
규격 허용
Torque
(Tonf * m)		 최대
회전수
(rpm)		 치수(mm) Grease
(kg)		 중량
(kg)		 GD2
(kgf*㎡)
축경 E ℓ1 C B BE F K S
Max.
(D)		 Max.
(DE)
CEM450 11.0 1.690 205 225 418 200 18 290 320 372 151 5.0 2.1 304 182
CEM500 16.6 1,520 250 270 494 236 22 335 380 424 168 6.0 3.1 453 37.0
CEM560 26.5 1360 280 305 552 265 22 385 430 472 187 6.5 3.8 664 70.0
CEM630 42.0 U10 325 355 658 315 28 455 500 544 213 8.0 5.8 1,020 139.0
CEM710 61.2 1,070 360 400 73B 355 28 510 565 622 242 8.5 7.8 l,460 252.0
CEM800 87.5 950 405 450 832 400 32 570 635 690 267 9.5 11.0 2,090 4S1.0
CEM900 125.0 840 475 510 932 450 32 670 715 792 295 10.S 14.0 3,020 743.0
CEM1000 171.0 760 510 570 1,040 500 40 720 800 858 322 12.0 20.0 4,130 1,440.0
CEM1120 240.0 682 600 640 1,160 560 40 840 900 990 360 13.0 26.0 5,970 2,810.0
CEM1250 331.0 610 710 800 1,460 710 40 960 1,060 1,126 399 14.0 37.0 9,820 5,630.0
※ 중량 및 GD2의 값은 내경 가공이 되지 않은 상태의 경우입니다.
규격 허용
Torque
(kgf*m)		 최대
회전수
(rpm)		 치수 (mm) Grease
(Kg)		 중량
(kg)
축경 (D) A E ℓ1 C B F K
Max.
GD10 116.3 8,000 50 116 89 43 3.0 69 84 39 0.04 4.5
GD15 239.8 &.500 60 152 101 49 3.0 86 105 48 0.07 9.1
GD20 435.7 5,600 73 178 127 62 3.0 105 126 59 0.11 15.9
GD25 762.2 5,000 92 213 159 77 5.0 131 155 72 0.21 29.5
GD30 1,234.7 4,400 105 240 187 91 5.0 152 180 84 036 43.1
GD35 1,887.8 3,900 124 279 218 106 5.5 178 211 9B 0.54 68.0
GD40 3,122.4 3.600 146 318 248 121 6.0 210 245 111 0.91 97.5
GD45 4r2S5.7 3,200 165 346 278 135 8.0 235 274 123 1.04 136.0
GD5O V14.8 2,900 178 389 314 153 8.0 254 크06 141 1.77 19L0
GD55 7r551.0 2,650 197 425 344 168 8.0 279 334 158 2.22 219.0
GD60 224.5 2,450 214 457 384 188 8.0 305 366 169 3.18 306.0
GD70 U776 2,150 240 527 452 221 9.5 343 425 196 4.35 485.0
규격 허용
Torque
(Tonf * m)		 죄대
회전수
(rpm)		 치수 (mm)

Grease
(Kg)

</th		 중량
(kg)
축경 (D) A E ℓ1 C B G K
Max.
GDL80 17.3 1,750 250 591 508 249 9.5 356 572 243 9.5 703
GDL90 23.0 1,550 275 660 565 276 13 394 641 265 12.3 984
GDL100 31.6 1,450 310 711 623 305 13 445 699 294 15.0 1,302
GDL11O 42.1 1,330 345 775 679 333 13 495 749 322 17.7 1,678
GDL12O 56.6 1,2Q0 380 B38 719 353 13 546 826 341 20.9 2,114
GDL13O 73.3 1,075 410 911 761 371 19 584 887 362 32.7 2,595
GDL140 92.1 920 480 965 805 393 19 686 940 378 33.1 3,107
※ 중량은 내경 가공이 되지 않은 상태의 경우입니다.
규격 허용
Torque
(kgf*m)		 죄대
회전수
(rpm)		 치수 (mm) Grease
[Kg)		 중량
(kg)
축경 A E ℓ1 ℓ2 C B F K
Max.
(D)		 Max.
(DE)
GS10 116.3 8,000 50 60 116 870 43 40 4.0 69 84 39 0.04 4.5
GS15 239.8 6,500 65 75 152 99.0 49 46 4.0 86 105 43 0.07 9.1
GS20 435.7 5,600 78 92 178 124.0 62 58 4.0 105 126 59 0.11 15.9
GS25 762.2 5,000 98 111 213 156.0 77 74 5.0 131 155 72 0.21 29.5
GS30 1,234.7 4,400 111 130 240 184.0 91 88 5.0 152 180 84 0.36 43.1
GS35 1,887.8 3,900 134 149 279 213.5 106 102 5.5 173 211 98 0.54 68.0
GS40 3,122.4 3,600 160 171 318 243.0 121 115 7.0 210 245 111 0.91 97.5
GS45 4,285.7 3,200 183 194 346 274.0 135 131 8.0 235 274 123 1.04 136.0
GS50 5,714.8 2,900 200 222 389 309.0 153 147 9.0 254 306 141 1.77 191.0
GS55 7,551.0 2,650 220 248 425 350.0 168 173 9.0 279 334 153 2.22 219.0
GS60 9,224.5 2,450 244 267 457 384.0 188 186 10.0 305 366 169 3.18 306.0
GS70 13,776.0 2,150 289 305 527 454.0 221 220 13.0 343 425 196 4.35 485.0
규격 허용
Torque
(Tonf * m)		 최대 회전수 (rpm) 치수 (mm) Grease 중량
죽경 A E ℓ1 ℓ2 C B F K
Max.
(D)		 Max.
(的
GSL80 17.3 1,750 250 400 591 511 249 249 13 356 451 243 5 699
GSL90 23.0 1,550 275 450 660 566 276 276 14 394 508 265 6 984
GSL100 31.6 1,450 310 490 711 626 305 305 16 445 530 294 8 1,252
GSL110 42.1 1,330 345 525 775 682 333 333 16 495 5S4 322 9 1,637
GSL120 56.6 1,200 380 S80 838 722 383 353 16 546 648 341 11 2,077
GSL130 73.3 1,075 410 620 911 761 371 371 19 584 700 362 17 2.572
GSL140 92.1 920 480 660 965 805 393 393 19 686 743 37S 17 3,602
※ 중량은 내경 가공이 되지 않은 상태의 경우입니다.
규격
(외경 A)		 치수 (mm)
축경 (D) ℓ1 B F K
Max.
SAM 112 40 50 58 79 40
125 50 63 70 92 43
140 56 71 80 107 47
160 65 80 95 120 52
180 75 90 105 134 56
200 85 100 120 149 61
224 100 112 145 174 65
250 115 125 165 200 74
280 135 140 190 224 32
315 160 170 225 260 98
355 180 190 250 288 108
400 200 200 285 329 114
CAM 450 205 200 290 372 151
500 250 236 335 424 168
560 27S 265 385 472 187
的 0 325 315 455 544 213
710 360 355 510 622 242
800 405 400 570 690 267
900 475 450 670 792 295
1,000 510 500 720 858 322
1,120 600 560 840 990 360
1,250 710 710 960 1,126 399
※ 허용토크는 SSM, CCM을 참조하십시오.

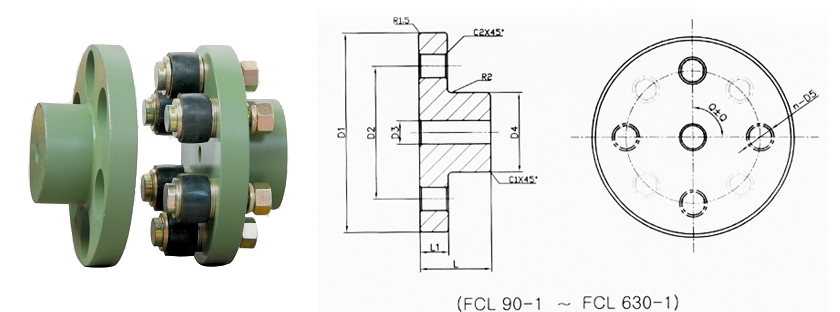

플랜지 카플링(FLANGE COUPLING)
size D1 D2 D3 D4 n-D5 L1 L C1 C2 Q±Q
90-1 90 60 11 35.5 4-19Φ 14 28 1 1 90˚±15
100-1 100 67 11 40 4-23Φ 16 35.5 1 1 90˚±15
112-1 112 75 13 45 4-23Φ 16 40 1 1 90˚±15
125-1 125 85 13 50 4-32Φ 18 45 1.5 1 90˚±15
140-1 140 100 13 63 6-32Φ 18 50 1.5 1 90˚±15
160-1 160 115 15 80 8-32Φ 18 56 1.5 1 60˚±15
180-1 180 132 15 90 8-32Φ 18 63 1.5 1 45˚±15
200-1 200 145 21 100 8-41Φ 22.4 71 2 1.5 45˚±8
224-1 224 170 21 112 8-41Φ 22.4 80 2 1.5 45˚±8
250-1 250 180 25 125 8-51Φ 28 90 2 1.5 45˚±8
280-1 280 200 34 140 8-57Φ 40 100 2 2 45˚±8
315-1 315 236 41 160 10-57Φ 40 112 2 2 36˚±8
355-1 355 260 60 180 8-72Φ 56 125 3 2 45˚±4
400-1 400 300 60 200 10-72Φ 56 125 3 2 36˚±4
450-1 450 355 65 224 10-72Φ 56 140 4 2 30˚±4
560-1 560 450 85 250 14-72Φ 56 160 4 2 25.7˚±4
630-1 630 530 95 280 18-72Φ 56 180 4 2 20˚±4

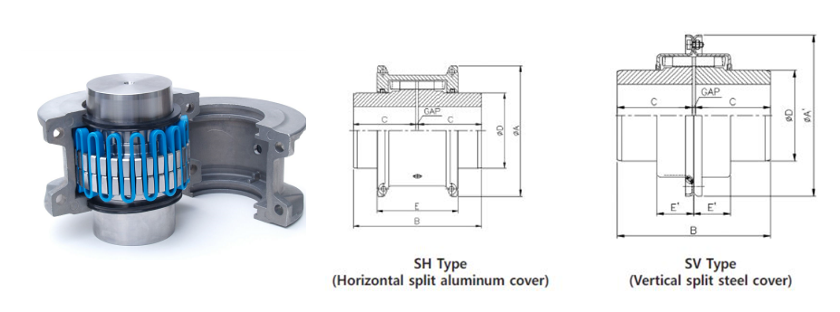

그리드 카플링(GRID COUPLING)
규격 최대
회전수
(rpm)		 허용
Torque
(kgf • m)		 치 수 (mm) 중광
Weight
{kg)		 Grease
(kg)
축경 A Ar B C D E E Gap
Max. Min. Normal max.
20S 4,500 4.9 30 101.6 111.1 98.0 47.5 39.7 66.5 24.2 1.5 3.0 4.5 1.9 0.03
30S 4,500 13.8 36 111.0 120.7 98.0 47.5 49.2 68.3 25.0 15 3.0 4.5 2.6 0.03
40S 4,500 23.0 44 117.5 128.5 104.6 50.8 57.1 70.0 25.7 15 3.0' 4.5 3.4 0.05
50S 4,500 40.0 50 138.0 147.6 123,6 60:3 的.7 79.5 31.2 1.5 3.0 4.5 5.4 0.05
60S 4.350 63.0 57 150.5 162.0 130.0 63.5 76.2 92.0 32.2 1.5 3.0 4.5 7.3 0.09
70S 4,125 92.0 65 161.9 173.0 155.4 76.2 873 95.0 33.7 15 3.0 4.5 10.0 0.11
80S 3,600 190.0 79 194.0 200.0 180.8 88.9 104.8 116.0 442 15 3.0 6.0 18.0 0.17
90S 3,600 345.0 95 213.0 231.8 199.8 98.4 123.8 122.0 47.7 1.5 3.0 6.0 25.0 0.25
100S 2,440 582.0 107 250.0 266.7 245.7 120.6 142.0 155.5 60.0 15 4.5 9.5 42.0 0.43
110S 2,250 864.0 117 270.0 285.8 258.5 127.0 1603 161.5 必4.2 15 4.5 9.5 54.0 0.51
120S 2,025 1.3670 136 308.0 319.0 304.4 149.2 179.4 191.5 73.4 1.5 6.0 12.5 81.0 0.73
130S 1,800 1,843.0 165 346.0 377.8 329.8 161.9 217.5 195.0 75：1 1.5 6.0 12.5 121.0 0.91
140S 1,650 2,660.0 184 384.0 416.0 371.6 184.1 254.0 201.0 78.2 15 6.0 12.5 178.0 1.13
150S 1,500 3,687.0 203 453.1 476.3 371.8 183 0 269.2 271.3 106J 1.5 60 12.5 2340 1.95
160S 1,350 5,185.0 228 501.4 533.4 4033 198.0 304.8 278.9 1143 15 6.0 12.5 317.0 2.81
170S 1,225 6.193.0 279 566.4 5842 437.8 216.0 355.6 3043 1194 15 6.0 12.5 448.0 3.49
180S 1,100 9.586.0 311 629.9 630.0 483.6 239.0 393.7 321.1 130.0 1.5 6.0 12.5 619.0 3.76
190S 1,050 12,670.0 339 675.5 685.0 5242 259.0 436.9 325.1 135.0 1.5 6.0 12.5 776.0 4.400
200S 900 17,380.0 361 756.9 737.0' 564.8 279.0 497.8 355.6 145.0 1.5 6.0 12.5 1,057.0 5.62
210S 820 23,040.0 366 844.6 - 622.3 304.8 533.4 431.8 - 3.0 13.0 24.0 1,424.0 10.50
220S 730 31,100.0 411 920.8 - 622.9 325.0 571.5 490.2 - 3.0 13.0 24.0 1,784.0 16.05
230S 680 44.380.0 450 1,003.3 - 703.8 345.4 609.6 546.1 - 3.0 13.0' 24.0 2,267.0 24.00
240S 630 57,000.0 480 1,087.1 - 749.6 368.3 647.7 647.7 - 3.0 13.0' 24.0 2,950.0 33.80
※ 중량은 내경 가공이 되지 않은 상태의 경우입니다.
규격 최대
회전수
(rpm)		 허용
Torque
(kgf* m)		 치수 (mm)

플랜지
불트
수량

 Grease
(kg)
축경 A E C BE{SAS) BE{SFS) N F GAP
Max. Min. Max. Min. Max.
20S 3,600 4.9 36 101.6 35 47.5 89 203 45 102 52 86 5.0 4 0.03
30S 3,600 13.8 44 111.0 41 47.5 89 216 45 109 59 94 5.0 8 0.03
40S 3,600 23.0 57 117.5 54 50.8 89 216 45 109 78 113 5.0 8 0.05
50S 3,600 40.0 64 138.0 60 60.3 112 330 57 109 87 126 5.0 8 0.05
60S 3,600 63.0 79 150.5 73 63.5 127 330 64 1 的 103 145 5.0 8 0.09
70S 3,600 92.0 83 161.9 79 76.2 127 406 64 166 109 153 5.0 12 0.11
80S 3,600 190.0 95 194.0 89 88.9 184 406 93 204 122 178 5.0 12 0.17
90S 3,600 545.0 108 213.0 102 98.4 1S4 406 93 204 142 210 5.0 12 0.25
100S 2,440 582.0 127 250.0 90 120.6 203 406 103 205 171 251 6.5 12 0.43
110S 2,250 864.0 149 270.0 104 127.0 210 406 106 205 196 277 6.5 12 0.51
120S 2,025 1,267.0 165 308.0 119 1492 246 406 125 205 225 319 9.5 12 0.73
130S 1,800 184.3.0 178 346.0 135 161.9 257 406 130 205 238 346 9.5 12 0.91
140S 1,650 2,660.0 203 384.0 152 182.8 267 406 135 205 266 386 9.5 12 1.13
150S 1,500 3,687.0 254 453.1 173 182.9 345 371 175 187 334 425 9.5 14 1.95
160S 1350 5,185.0 279 501.4 186 198.1 356 406 180 205 366 457 9.5 14 2.81
170S 1,225 6,913.0 0.330 566.4 220 215.9 3S4 445 194 224 425 527 9.5 16 3.49
180S 1,100 9,586.0 330 629.9 249 238.8 400 490 202 247 451 591 95 16 3.76
190S 1,050 12,670.0 362 675.5 276 259.1 411 530 207 267 508 660 9.5 18 4.40
200S 900 17.280.0 381 756.9 305 279.4 445 575 224 289 530 711 9.5 18 5.62
※ 중량은 내경 가공이 되지 않은 상태의 경우입니다.

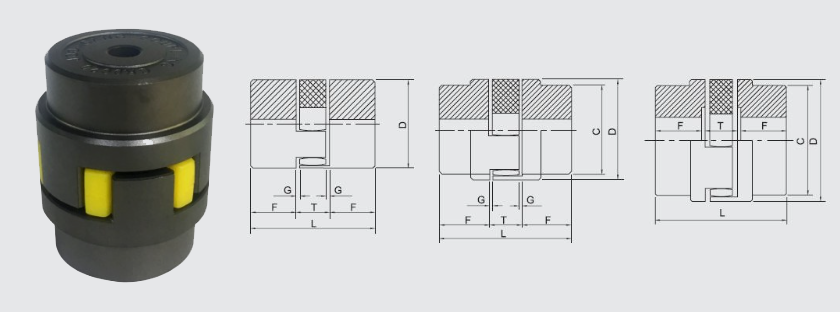

죠 카플링(JAW COUPLING)
SIZE Bore Dia(mm) Basic
Torque
(kg/m)		 Torsion
angle		 Dimension(mm)
min max C D F T L G 중량
MS 0511 5 11 0.4 3.2° - 25 12 11 35 1 0.08
MS 0714 7 14 1 3.2° - 35 18.5 13 50 1.5 0.3
MS 1119 11 19 2.5 3.2° 42 48 24 17 65 1.5 0.9
MS 1424 14 24 3.4 3.2° 50 58 27 18 72 1.5 1.3
MS 1928 19 28 12 3.2° 58 68 35 20 90 1.5 2.5
MS 1938 19 38 32 3.2° 68 78 35 22 92 1.5 4.4
MS 2845 28 45 65 3.2° 88 98 38.5 29 106 4 7.8
MS 3860 38 60 90 3.2° 98 118 45 30 120 3 10
MS 4275 42 75 125 3.2° 115 135 46 33 125 3.5 10
MS 6510 65 100 293 3.2° 130 160 66 45 177 5 19.5
MS 6511A 65 110 520 3.2° 150 200 105 45 255 5 36
MS 6511 65 110 790 3.2° 180 230 110 55 270 6 39
MS 55 9 28 3.5 3.2° - 55 30 18 78 2 1.0
MS 65 11 38 10 3.2° - 65 35 20 90 2.5 1.6

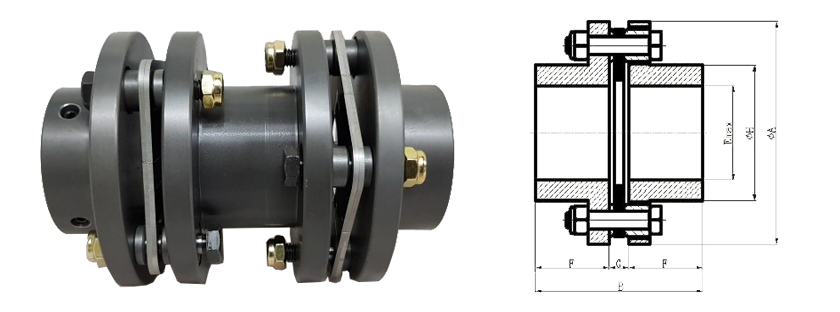

디스크카플링(DISK COUPLING)
SIZE
NO.		 Basic
Torque
(kg/m)		 max.
radial
load
(kg)		 max.
rpm		 Dimension(mm) 중량
A B Emax. F G H
10 9.2 25 39,000 81.1 57.4 32 25.4 6.6 45.8 1.1
15 18 56 34,000 92.8 65.8 35 28.7 8.4 50.8 1.7
20 25 83 30,000 103.7 78.2 42 33.5 11.2 61 2.4
25 43 120 25,000 125.8 93.9 50 41.1 11.7 71.2 4.4
30 79 180 22,000 143 107.3 60 47.8 11.7 83.9 6.9
35 130 270 19,000 168 131.2 72 57.2 16.8 105.5 11.5
40 210 380 16,000 194.1 144 82 63.5 17 118.2 17.4
45 340 450 15,000 214.2 174 95 76.2 21.6 137.2 25.5
50 500 610 13,000 246.2 201.7 108 88.9 23.9 156.3 38.7

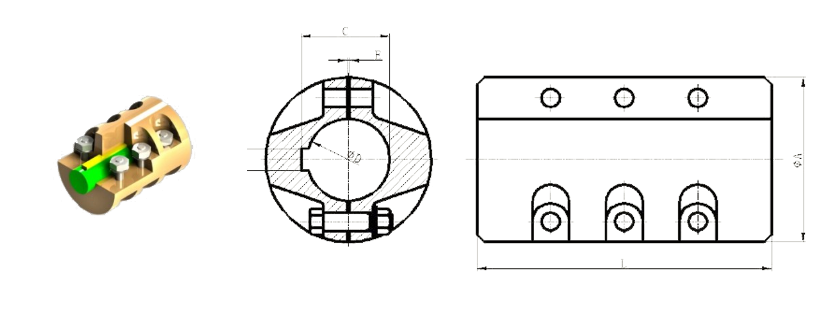

머프 카플링(MUFF COUPLING)
SIZE bore
øD(H8)
(mm )		 A L KEY WAY E BOLT torque
(kg.m)		 weight
(kg)
B(js9) C key(bXh)
MS-M25 ø25 ø50 88 7 28 7x7 1.6 4-M6x30L 22 1
MS-M30 ø30 ø60 105 7 33 7x7 1.6 4-M6x30L 30 1.5
MS-M35 ø35 ø70 120 10 38.3 10x8 1.6 4-M8x35L 40 2.5
MS-M40 ø40 ø80 140 10 43.3 10x8 1.6 6-M10x40L 55 3.9
MS-M45 ø45 ø90 160 12 48.4 12x8 1.6 6-M10x45L 70 5.6
MS-M50 ø50 ø100 176 12 53.3 12x8 2 6-M10x45L 95 7.2
MS-M55 ø55 ø110 180 15 60 15x10 2 6-M10x45L 120 9.6
